LQ-10 Data Link Module

High-bandwidth transmission within 1.5 km.

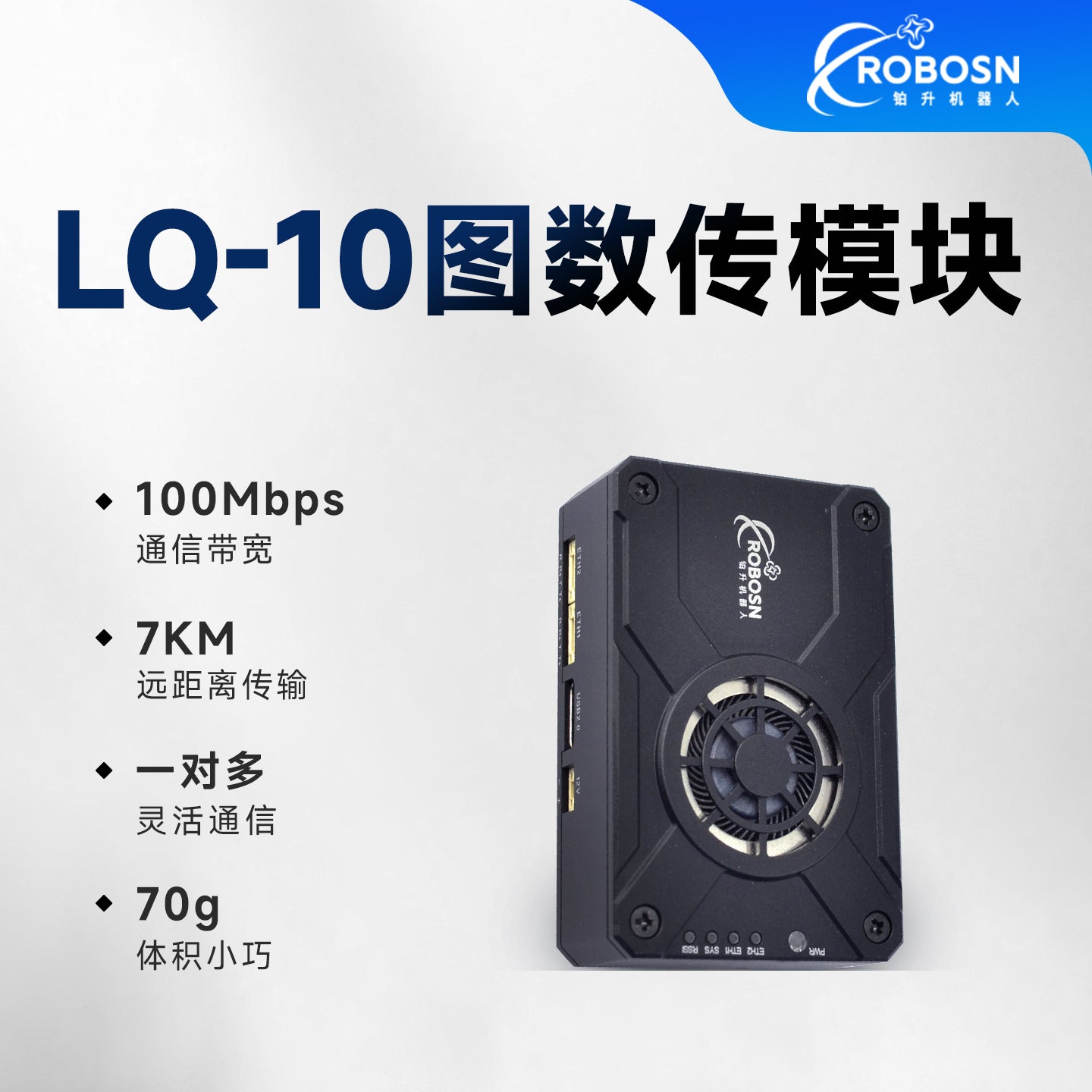

LQ-10 is positioned first around near-range broadband performance: within 1.5 km, the measured transmission bandwidth can reach 80 Mbps.

• Designed for UAV image transmission and high-throughput robot data return.
• Useful for 4K video, perception data, and point-cloud workflows.
• 100 Mbps air-interface bandwidth creates a clear performance baseline.

Return 4K video and point-cloud data.

The value is not only distance. LQ-10 is built for the type of data modern UAVs need to return: high-definition video streams and lower-level perception data for robotics development.

• Targets UAV inspection, robotics perception, and field test data return.
• Connects image transmission with engineering data, not only remote control.
• Keeps the product relevant for modern autonomous systems.

7 km measured narrowband air-to-ground link.

For longer-distance work, LQ-10 can move from broadband transmission to narrowband operation. The product data shows a measured 7 km air-to-ground link at 1.15 Mbps stable bandwidth.

• Broadband mode is specified under 2 km.
• Narrowband mode is specified under 7 km.
• Narrowband bandwidth supports 10 MHz channels 0-5.

One-to-one and one-to-many communication.

LQ-10 supports a simple paired link for one aircraft and one ground station, and it can also form one-to-many broadband networking for multi-node robot systems.

• Narrowband one-to-one communication mode.
• Broadband one-to-many communication mode.
• Up to 16 supported nodes in the product specification.

Broadband one-to-nine networking test data.

A one-to-nine broadband test shows that LQ-10 is not only a point-to-point product. It can support multi-node communication where a single system needs to coordinate multiple links.

• One central link can communicate with multiple receiving nodes.
• Field data is positioned as measured rather than theoretical.
• Useful for multi-robot demonstrations and distributed payload links.

70 g compact module for UAV installation.

After the communication claims, the physical integration story is simple: LQ-10 weighs 70 g excluding antennas and measures 63 mm x 40.5 mm x 20 mm.

• Small enough for UAV payload and onboard electronics layouts.
• 9-15 V power input fits practical robot power systems.
• Dimensions are clear enough for quick payload and mounting checks.

Data-link latency as low as 10 ms.

Low latency is important for field operation, telemetry, and interactive robot workflows. The product test data shows latency down to 10 ms.

• Latency claim is kept as a measurable product proof point.
• Ping-style data makes the latency claim easy to evaluate.
• Useful for control, monitoring, and real-time payload feedback.

Web-based visual configuration.

Web configuration is a practical advantage for field teams. Engineers can adjust network and wireless settings through a browser instead of relying only on command-line tools.

• Configuration method: Web configuration.
• Works naturally with IP-based ground station workflows.
• Clear enough for international teams to understand the setup workflow quickly.

TCP, UDP, multicast, Ethernet, UART, and SBUS.

LQ-10 provides robot-friendly interfaces and serial networking modes for different integration paths, including TCP server, TCP client, UDP, and multicast.

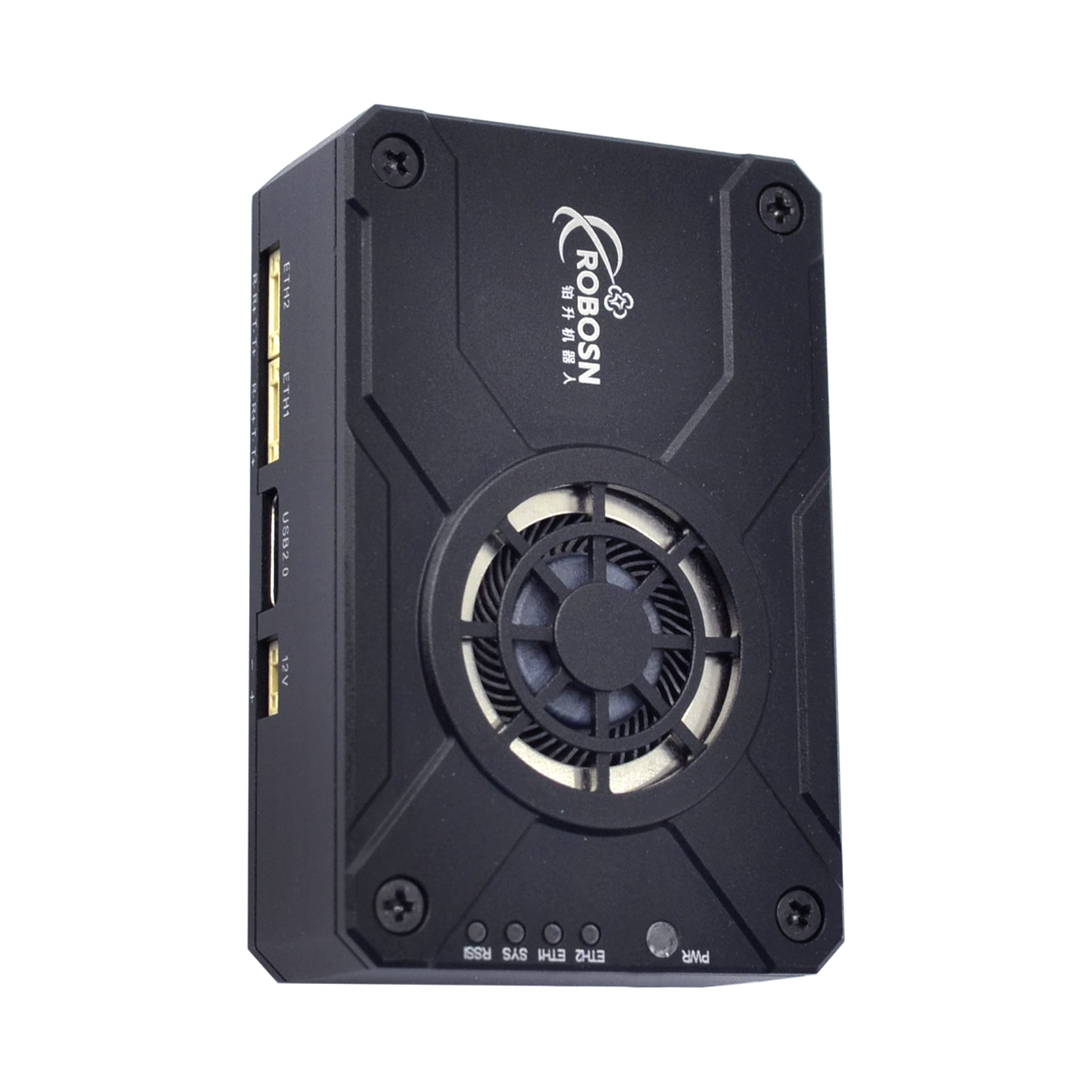

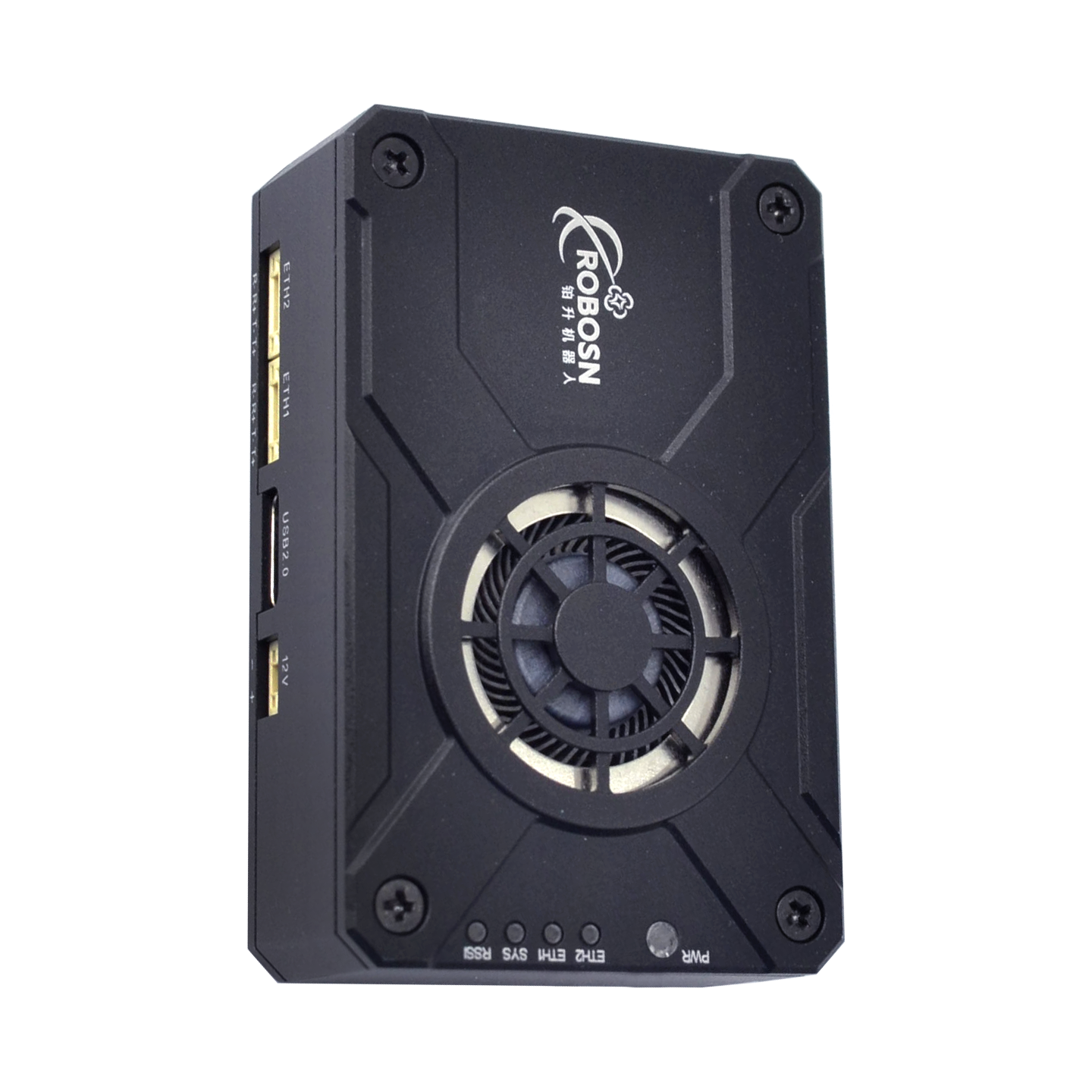

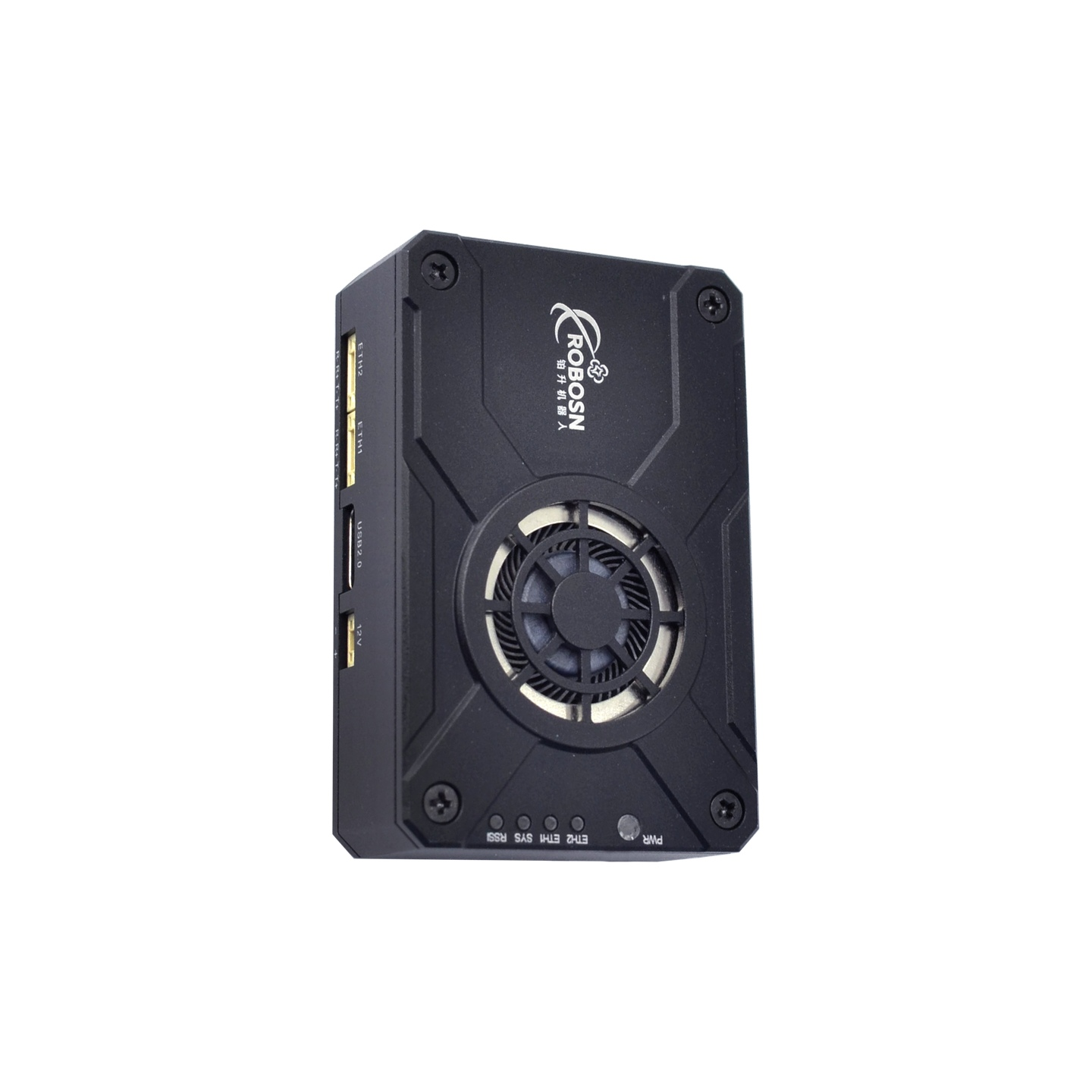

• Interfaces include Ethernet, serial port, USB 2.0, UART, SBUS, reset, and 12 V power.
• Status indicators cover power, Ethernet, system, RSSI, and signal strength.
• External interfaces are specified as serial port and Ethernet port.

Active cooling and clear status indicators.

The later product-detail sections explain the physical operating details: an internal fan for active cooling and multi-state indicator lights for quick operating-status recognition.

• PWR indicates LQ-10 power input.
• ETH1 and ETH2 indicate Ethernet access.
• SYS indicates system operating state; RSSI indicates signal strength by color.

Package contents for integration.

The package list is kept last, where buyers expect it. It supports procurement and installation checks after the product value is already clear.
