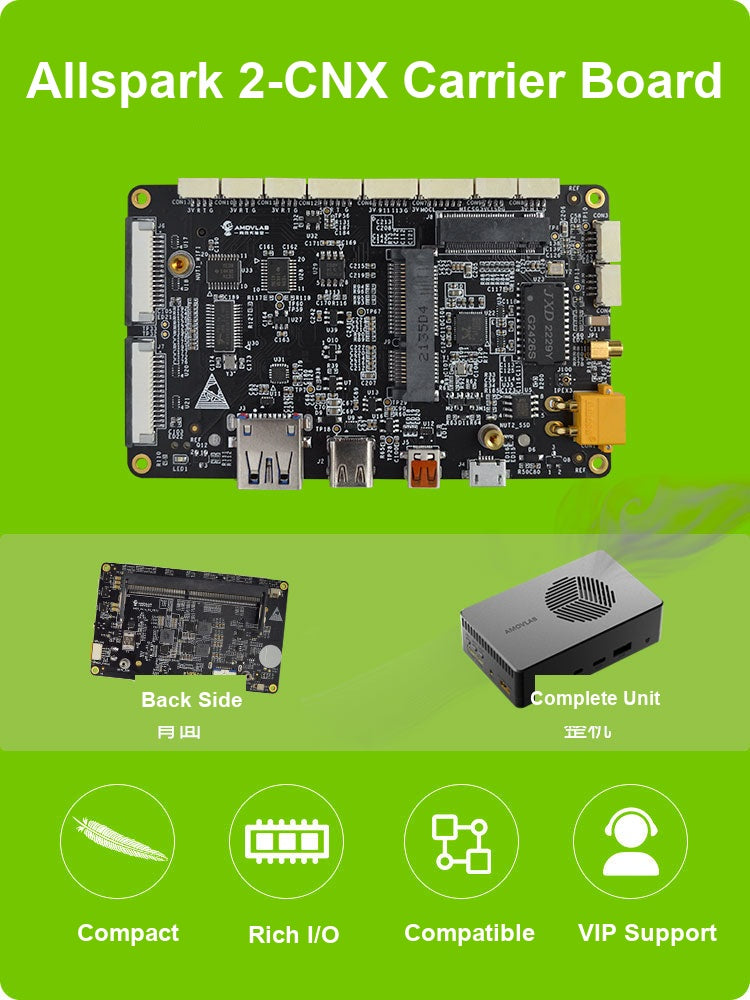

Available as a bare carrier board or complete-machine enclosure, so the same CNX platform can fit both embedded integration and finished onboard computer builds.
Allspark 2-CNX Orin NX Carrier Board
- $299.00
- $299.00
- Unit price
- per
Subtotal:
$299.00
Couldn't load pickup availability
Shipping
Shipping options and costs are calculated at checkout or confirmed in your quotation.
Delivery time depends on destination, customs clearance, and product availability.
Returns & Refunds
Eligible returns and refunds follow our Refund Policy.
Return shipping is handled according to the policy terms.
Description
xAllspark 2-CNX Orin NX Carrier Board
Expansion carrier board for NVIDIA Jetson Orin NX modules, designed for robotics, UAV, and onboard AI development.
Shipping & Return
xShipping
Shipping options and costs are calculated at checkout or confirmed in your quotation. Delivery time depends on destination, customs clearance, and product availability.
AMOVLAB ships technical products globally where logistics and compliance allow. Freight, duties, taxes, customs clearance, and delivery timelines may vary by destination and order configuration.
Returns & Refunds
Eligible returns and refunds follow our Refund Policy. Return shipping is not automatically free unless the return is caused by our error, a confirmed defective item, or another case covered by the policy.

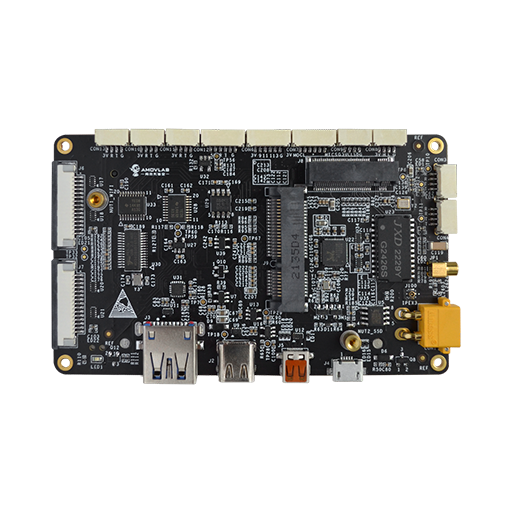

Jetson Orin NX carrier board
Allspark 2-CNX carrier board: compact size, rich interfaces, strong compatibility.
A 100 x 60 mm Jetson carrier board refined for UAV and robotics development. It brings Orin NX, Orin Nano, and Xavier NX compatibility together with high-speed USB, Ethernet, MIPI camera, storage, wireless, serial bus, power output, cooling, accessories, and AMOVLAB support.
Allspark 2-CNX
Orin NX Carrier Board
Compact100 x 60 x 15.2 mm board layout for space-constrained robots
Rich I/OUSB, Ethernet, MIPI, CAN, UART, SPI, I2C, GPIO, M.2, Mini PCIe
CompatibleOrin Nano 8G, Orin NX 16G, Orin NX 8G, Xavier NX 8G
SupportedNVIDIA partner background, certificates, accessories, and AMOVLAB support
Product selling points
Core highlights for compact Jetson integration.
Compact size, rich interfaces, module compatibility, expansion, cooling, certification, shipping list, and support are organized into clear buyer-facing product highlights.
The 100 x 60 x 15.2 mm outline keeps the carrier board small enough for UAV cabins, mobile robot stacks, and payload bays where every millimeter matters.

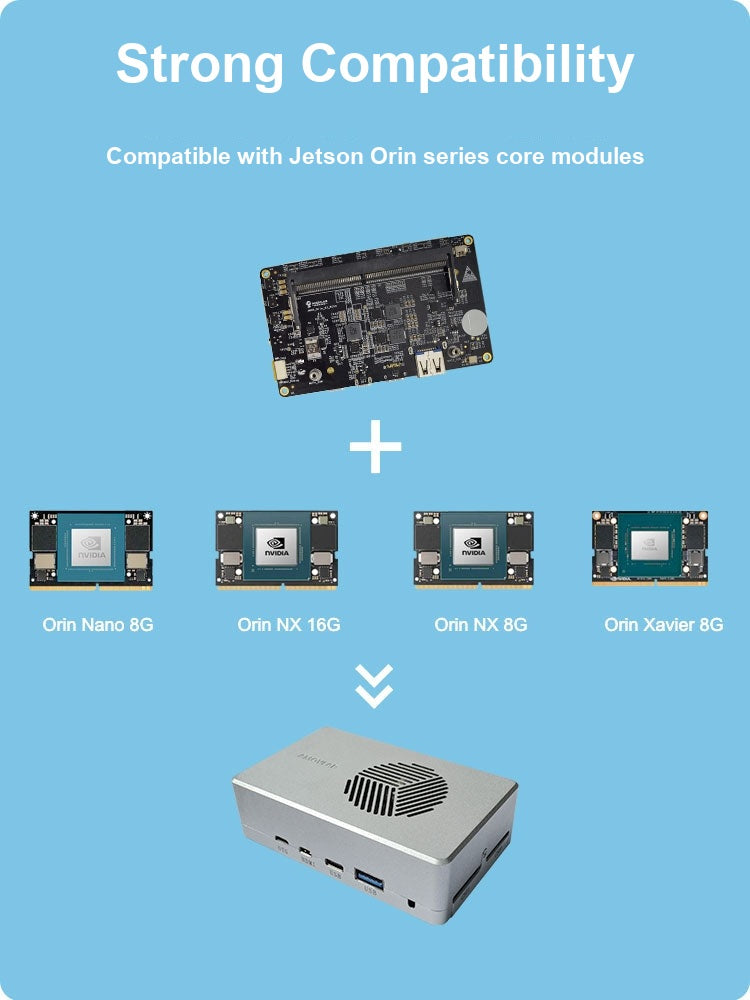

Designed around the Jetson module ecosystem, with compatibility for Orin Nano 8G, Orin NX 16G, Orin NX 8G, and Xavier NX 8G.

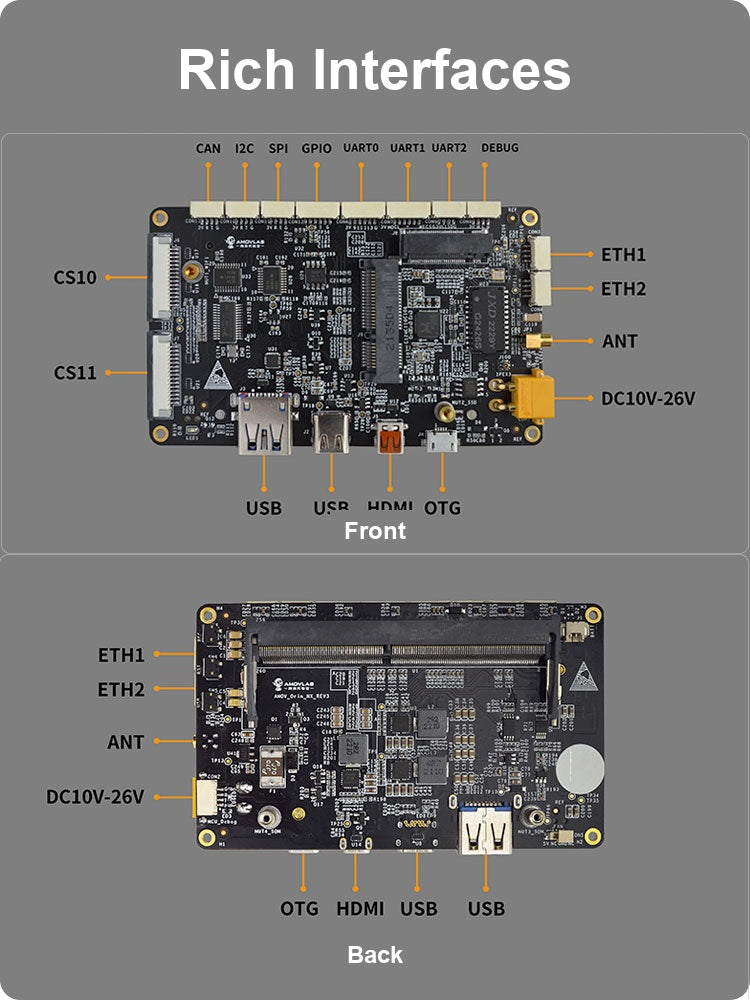

The board exposes CAN, I2C, SPI, GPIO, UART0, UART1, UART2, debug UART, dual MIPI CSI, dual Ethernet, antenna, USB 3.2 Type-A, USB 3.2 Type-C, HDMI, OTG, M.2 Key M, Mini PCIe, and DC 10-26 V input.
M.2 Key M supports SSD expansion for more stable storage, while Mini PCIe supports WiFi or 4G modules for wireless communication and field networking.
USB 3.2 Type-A and Type-C provide up to 10 Gbps transfer capability; Micro HDMI 2.0 supports display output, and the network path is positioned for 1080p HD video transmission.
Two MIPI CSI interfaces support camera integration, including AMOVLAB self-developed MIPI IMX290 camera workflows with software support.
The carrier board can provide 3.3 V @ 3 A and 5 V @ 5 A output for high-power peripherals, reducing the need for separate power conversion modules.
Official NVIDIA heatsink/fan support, DC 10-26 V input, a fan connector, and a -20 to 50 C operating range support more stable embedded deployment.
NVIDIA partner and Inception showcase credentials, qualification certificates, a complete shipping list, and VIP after-sales support help teams start integration with fewer missing accessories.
Main parameter highlights
Key parameters organized as structured product facts.
Compatibility comes first, followed by storage, wireless expansion, USB speed, networking, camera input, power output, HDMI, control interfaces, and operating reliability.
- Compatible modules
- Orin Nano 8G, Orin NX 16G, Orin NX 8G, Xavier NX 8G
- Board size
- 100 x 60 x 15.2 mm, compact 49 g carrier board
- Power input
- XT30 DC input, 10-26 V
- External power output
- 3.3 V @ 3 A and 5 V @ 5 A for peripherals
- High-speed USB
- 1 x USB 3.2 Type-C, 1 x USB 3.2 Type-A, up to 10 Gbps transfer capability
- Flashing and debug
- Micro USB 2.0 OTG flashing port and debug UART
- Video and display
- Micro HDMI 2.0, networked 1080p HD video transmission positioning
- Camera input
- 2 x MIPI CSI interfaces, compatible with AMOVLAB MIPI IMX290 camera software package
- Networking
- Built-in switch with 2 x 10/100 Ethernet adapter interfaces
- Storage expansion
- PCIe 4 M.2 Key M interface, SSD expansion support
- Wireless expansion
- PCIe 4 Mini PCIe interface, WiFi and 4G module expansion support
- Control interfaces
- CAN, I2C, SPI, GPIO, UART0, UART1, UART2, debug UART
- Service interfaces
- User key, recovery key, reset key, RTC battery connector, fan connector, external antenna path
- Operating range
- -20 to 50 C
- SKU
- ALLSPARK-2-CNX
Shipping list and after-sales
The package is part of the value, not an afterthought.
The package list shows what arrives with the CNX board and why those accessories reduce integration friction during bench setup and field integration.
Allspark 2-CNX carrier board, IACNX_V1, quantity 1.
Official fan/heatsink assembly, DC5521-to-XT30 power cable, power adapter, and power cord for bench setup.
Micro HDMI-to-HDMI adapter cable, Micro USB 2.0 cable, and Ethernet adapter board from 4-pin GH1.25 to RJ445/RJ45-style network connection.
7 x 4-pin GH1.25 cables, 3 x 6-pin GH1.25 cables, CR1220 RTC battery cable, fan adapter cable, and certificate.
The bundle includes the board plus the cables needed to start integration instead of forcing teams to source every connector separately.
Match the carrier board to your Jetson module and robot platform.
Tell AMOVLAB which Jetson module, SSD, WiFi or 4G module, camera, Ethernet/video path, CAN/UART peripherals, and power budget you plan to use. We can help confirm whether the Allspark 2-CNX package covers the integration path.
